NET_BUFFER_LIST processing

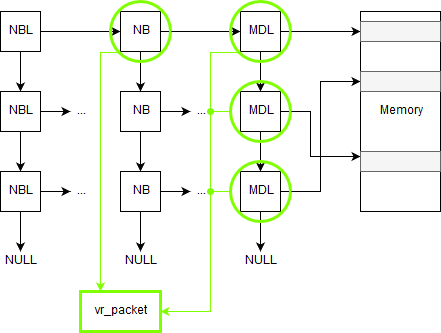

NET_BUFFER_LIST and vr_packet relationship

nbl-vrpacket

  • NET_BUFFER_LIST is a linked list of packet containers
  • NET_BUFFER represents a single packet
  • MDL linked list represent a series of memory buffers
  • Windows API mostly accepts NET_BUFFER_LIST structures
  • vRouter expects vr_packet to be a single network packet
  • Thus Windows vRouter code must assure that vr_packet will encapsulate:
    • single NET_BUFFER_LIST
    • single NET_BUFFER

Receiving fragmented packets from container

nbl-fragmented-container-input

Scenario: Packet is fragmented in container, before reaching vRouter

  • Extension receives a single NET_BUFFER_LIST with a set of NET_BUFFER structures
  • Each NET_BUFFER should be in its own NET_BUFFER_LIST to fulfill single network packet - vr_packet relationship required by dp-core

Fragmenting egress tunneled packets

nbl-fragmenting-egress-tunneled

Scenario: Packet must be tunneled, but it's too big, thus must be fragmented by vRouter

  • Windows API supports dividing packet into fragments
  • Although it's vRouter responsibility to:
    • Add fragmentation info to IP headers
    • Fix packet headers (e.g. header checksums)
  • Note: vRouter on Linux fragments the inner packet
    • As a result each fragment is encapsulated separately
    • vRouter on Windows implements the same behaviour
